DS18 2 CHANNEL MARINE AMPLIFIER FULL RANGE 1500 W 4 OHMS CLASS D NXL-M2

• COMPACT & POWERFULL - This marine amplifier delivers 1500 watts peak and 880 watts at 4 ohm bridge
• SLICK DESIGN - White and Gray Aluminum body will make your system look good.
• READY FOR THE ELEMENTS - IPX-5 makes this water resistant.
• FROM HIGH TO LOW - Stereo Full Range Amplifer to cover all your sound needs!
• FITS EVERYWHERE - This marine amplifier is small enough to fit almost anywhere in your boat or vehicle.

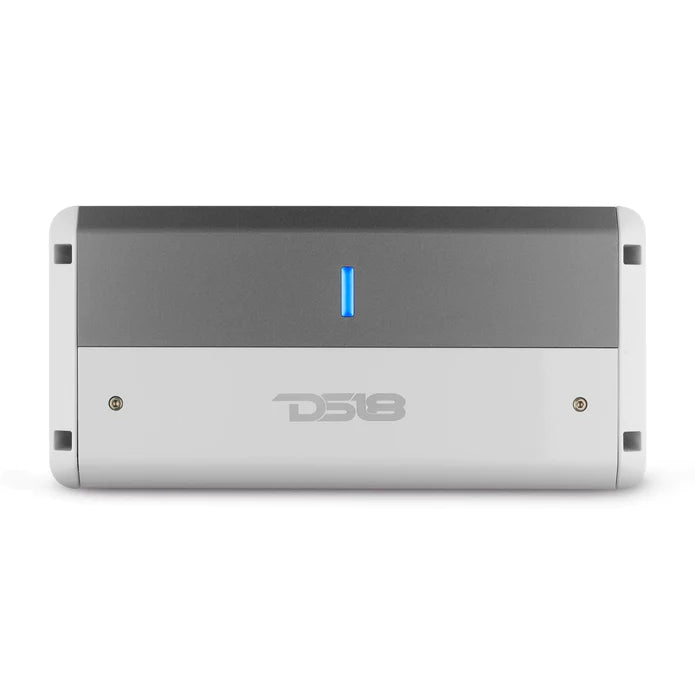

DS18 2 Channel Marine Amplifier Full Range 1500 W 4 ohms Class D NXL-M2

DS18 presents the best digital class amplifier that will provide the best performance and a very low operating temperature compared to other regular amplifiers, this makes it perfect for marine environments like inside cabins or confined spaces on boat. In addition to resisting corrosion, it is also capable of resisting splashed water if necessary.

This listing includes:

(1) DS18 2 Channel Marine Amplifier 1500 W 4 ohms Class D NXL-M2

(1) Owner's Manual

(1) Set of installation accessories. (Replacement fuse included)

Power

• Total Watts: 1500 W

• RMS Power @ 4 ohm: 2 x 250 W

• RMS Power @ 2 ohm: 2 x 400 W

• RMS Power @ 4 Ohm Bridge: 1 x 800 W

Audio

• Frequency Response: 20Hz – 20KHz

• Signal to Noise Ratio: >90db

• Efficiency @ 4 ohm: 90%

• Channel Separation: >55db

• Total Harmonic Distortion (THD): <0.15%

• Low Level Input Range: 0.2V-6V

• High Level Input: Yes: >5V

• Selectable X-Over:  HPF/LPF/Full

• X-Over Filter Range: 40Hz- 2KHz

• Bass Boost Range: 0-12db

• Bass Boost Frequency: 45Hz 5Hz

• Features:

• Amplifier Class: Digital (D)

• Amplifier Type: Stereo Full Range

• Number of Channels: 2 ch

• Minimum Impedance 2 Ohm (stereo) / 4 Ohm Bridge

• LED Indicator: Clipping | Protect |Power.

• Power Input Terminal Size: 4 Ga

• Fuse Size: 80 A (2 x 40A)

• Thermal Protection: Yes

• Over-Load Protection:  Yes

• DC Output Protection: Yes

• Short Circuit Output Protection: Yes

• Voltage Input Protection: Yes

• Clipping Protection: Yes

• Body Color |Finish: Gray + White | Aluminum ABS

• Extra Features

• Water Resistant Rated: Yes, IPX5 (Water Splashing)

• PCB Layout Design: 4 Layer| Coated.

• RCA Output: Yes, 2 Ch (Left/Right)

• UV Compliant: Yes

• Tiffany Style RCA: Yes

• High Level Input: Yes

• Stainless Steel Hardware: Yes (Screws)

• Potentiometer: High Quality Metal Knob

Product Dimensions in inches:

• Overall Length: 9.6â€

• Overall Wide: 4.5â€

• Overall Hight: 1.7â€

• Heatsink Length: 8.6â€

• Gross Single Unit Weight: 3 lbs

Package Dimensions in inches:

• Length: 11.5â€

• Width: 6.25â€

• Height: 3.25â€

• Weight: 3.5â€
