DS18 6.5 JEEP WRANGLER ENCLOSURES /W SPEAKERS & TWEETERS JL/JLU/GLADIATOR JT
DS18 6.5 JEEP WRANGLER ENCLOSURES /W SPEAKERS & TWEETERS JL/JLU/GLADIATOR JT
Regular price
$399.95 USD
Regular price
Sale price
$399.95 USD
Unit price
/
per
Couldn't load pickup availability

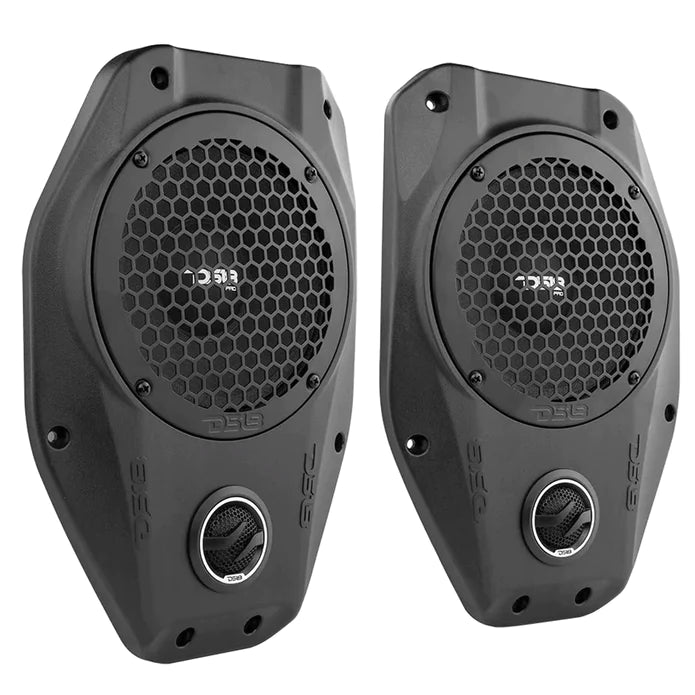

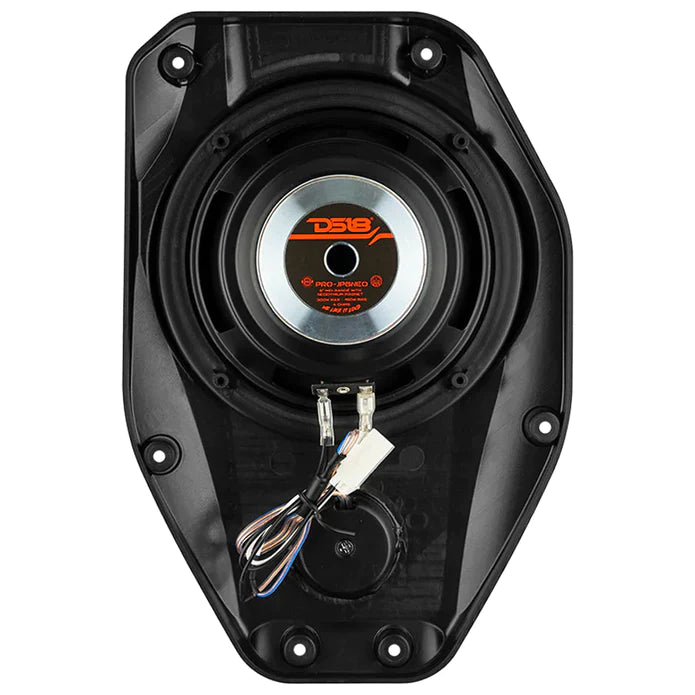

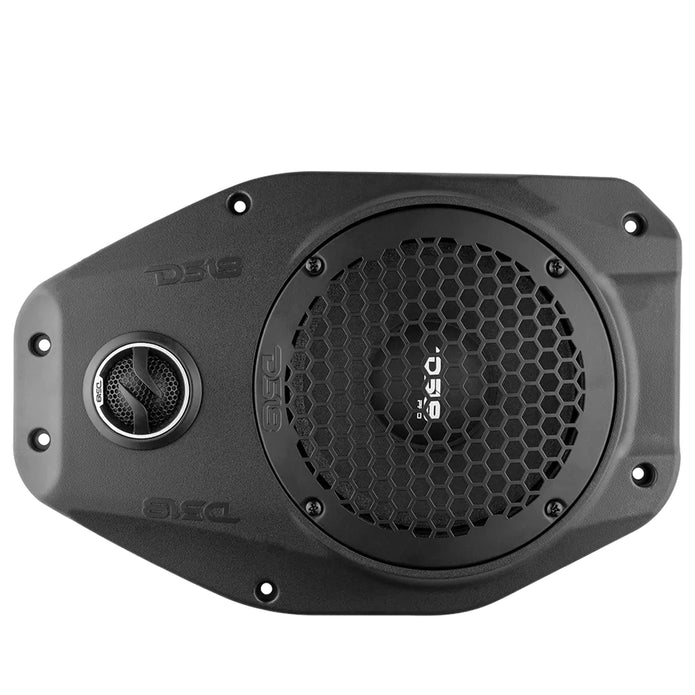

DS18 6.5? Jeep Wrangler Enclosures /w Speakers & Tweeters JL/JLU/Gladiator JT
The JL-SB6 is a handpicked soundbar speaker upgrade kit designed for Jeep Wrangler JL Models/ Gladiator JT Models. This package includes a Set (Left and Right) of Speaker Soundbar Upgrade Kit with a 6.5? Neodymium Midrange Speaker and a 1? Dome Tweeter. This system requires cutting of the existing sound bar for installation, templates are included and a Dremel is recommended. The users who like it loud can power it up with an external amp for even more vibrancy.
Highlights:
- Designed to upgrade factory 2-way speakers from 4? to 6.5?.
- Compatible with JL and Gladiator Jeeps with the basic sound system.
- 5? Neodymium speaker with 1? Dome Tweeter included.
- Speaker depth 2.5?.
- Mounting Plate/ Cutting Template Included.
- All installation screws included.
- Speaker Connectors Plug & Play.
This listing includes:
(2) DS18 6.5? Soundbar Enclosure Upgrade (Left & Right) JL-SB6
SPECIFICATIONS:
Component Set: 2-Way
Nominal Speaker Diameter: 6.5? (165mm)
Nominal Tweeter Diameter: 1.7? (43mm)
Nominal Impedance: 4 Ohms
MAX Power Handling: 300 Watts
RMS Power Handling: 150 Watts
Total Sensitivity (1w/1m): 97dB
Frequency Response: 60Hz ~ 20KHz
SPEAKER SPECIFICATIONS:
Nominal Impedance: 4 Ohms
Total Sensitivity (1w/1m): 96 dB
Frequency Response: 60Hz ~ 10KHz
Voice Coil Diameter: 1.5" (38mm)
Voice Coil Former Material: Kapton
Winding Material: CCAW
Cone Material: Paper
Dust Cap Material: Paper
Surround Material: Cloth
Basket Material: Steel
Magnet Material: Neodymium
Magnet Weight: 3 Oz
SPEAKER THIELE & SMALL PARAMETERS:
Equivalent Volume - Vas: 4.46L (0.152ft?)
Excursion (one way) - Xmax: 15 mm
Free Air Resonance - Fs: 138 Hz
Mechanical Factor - Qms: 4.249
Electrical Factor - Qes: 0.977
Total Factor - Qts: 0.794
Moving Mass - Mms: 7.166g
Compliance - Cms: 148.927 U/M/N
Bl Factor - BL: 4.767
Voice Coil Inductance - Le: 0.08696mH
Diaphragm Area - Sd: 145cm?
DC Resistance - Re: 3.2 Ohm
Mechanical Mass w/o air - Mmd: 6.159g
TWEETER SPECIFICATIONS:
Nominal Impedance: 4 Ohms
Sensitivity (1w/1m): 92dB
Frequency Response: 1KHz ~ 20KHz
Hi Pass Crossover: 3.5KHz
Body Color | Material: Black | ABS / ABS
Voice Coil Diameter: 1? (25.4mm)
Voice Coil Former Material: Aluminum
Winding Material: SV
Diaphragm Material: PEI
Magnet Material: Neodymium
Magnet Weight: 13g
BODY | FEATURES:
Wiring | Connections: Plug & Play to factory Speaker Connector
Enclosure Material: Injection Molded ASA composite
Grill Material: Steel
Sold as Pair: Yes (Left and Right Set)
Color | Finish: Black | Satin
DIMENSIONS:
Overall Wide: 8.26? (210mm)
Overall Length: 12.36? (314mm)
Overall Depth: 3.27? (83mm)
