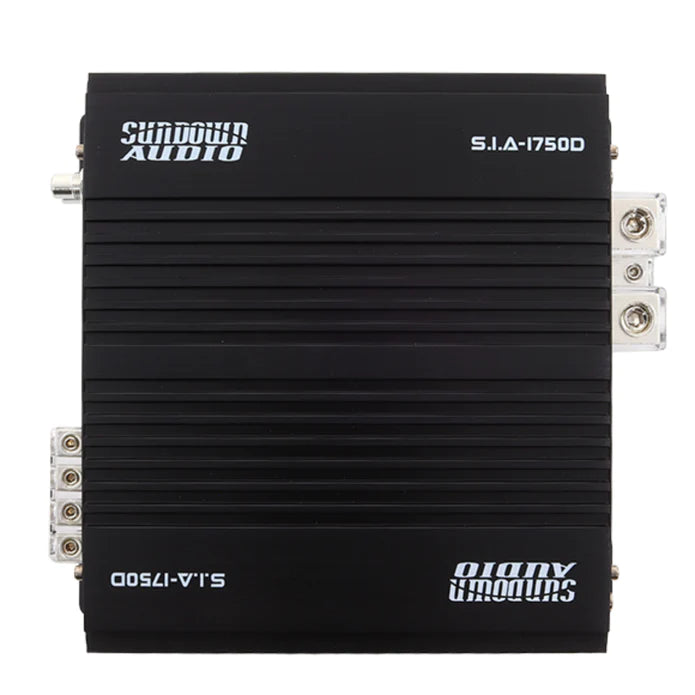

SUNDOWN AUDIO 1750W RMS MONOBLOCK CLASS D AMPLIFIER SIA-1750D

• 1750 Watts RMS
• Thermal Management: Smart Cooler (Fan Powered by Temperature or Audio with 3 Speeds)
• Protection System: Output Short/High/Low Supply Voltage/Thermal Protection
• 0 Gauge Power & Ground Wire Inputs
• Product Dimensions: 12" x 12" x 5"

Sundown Audio 1750W RMS Monoblock Class D Amplifier SIA-1750D

This Listing Includes:

(1) Sundown Audio 1750W Monoblock Class D Amp

Amplifier Specifications:

Monoblock Class D Amplifier

Monoblock 1750W RMS Amp



Power Handling:

RMS Power at 14.4V DC 1 ohm Mono: 1750-watts

RMS Power at 14.4V DC 2 ohm Mono: 1750-watts

RMS Power at 14.4V DC 4 ohm Mono: 1250-watts



Frequency Response: 10 Hz - 20K Hz (-3dB)

Bass Boost 0 dB - 12dB (50Hz)

Input Sensitivity 200MV

Signal Noise Ratio: 108 dB

Recommended Fuse Rating: TBA

Thermal Management: Smart Cooler (Fan Powered by Temperature or Audio with 3 Speeds)

Input Impedance: 56K-Ohms

Minimum Supply Voltage: 9V DC

Maximum Supply Voltage: 16V DC

Protection System: Output Short/High/Low Supply Voltage/Thermal Protection

0 Gauge Power & Ground Wire Inputs

8 Gauge Speaker Wire Inputs



Crossover:

High Pass Filter: 10 to 1Hz (-12dB/8) Variable

Low Pass Filter: 40Hz to 20KHz (-12dB/8) Variable
