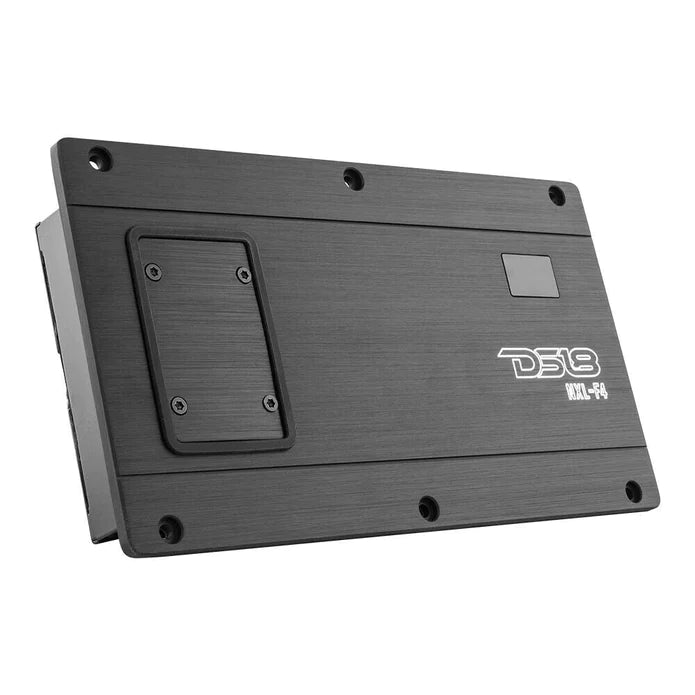

DS18 4 CH MARINE & POWERSPORTS AMPLIFIER CLASS D 1200W FLUSH MOUNT IPX67 NXL-F4
DS18 4 CH MARINE & POWERSPORTS AMPLIFIER CLASS D 1200W FLUSH MOUNT IPX67 NXL-F4
Regular price
$439.95 USD
Regular price
Sale price
$439.95 USD
Unit price
/
per
Couldn't load pickup availability
DS18 4 Ch Marine & Powersports Amplifier Class D 1200W Flush Mount IPX67 NXL-F4
The F4 is an exact duplicate of the very popular NXL-400.4 but now offered in flat mount configuration so you can keep a flush and clean look to your install. This 4 channel amplifier is the go to source to power all your DS18 marine speakers as all are an amazing fit with this sleek and powerful hydro amp.
Highlights:
- IPX67 with flush mount design for simple and clean install on roof, panel and sub bux applications. (No exposed wiring)
- Built in voltmeter to monitor battery and charging system.
- Designed specifically for all powersport applications.
- Conformal Coated PCB to withstand outdoor elements.
- Full range Class D design offers efficiency and performance.
- Compact size for easy installation.
- Selectable/variable HPF/LPF/FULL Crossovers (40Hz-400Hz) clipping, power, protection status LED Indicator.
- Flush Mount Design, Perfect for Boxes, Boat Walls, ATV/RV, Wall Mount, etc.
This listing includes:
(1) DS18 4 Channel Marine Amplifier NXL-F4
SPECIFICATIONS:
RMS Power @ 2 Ohm: 4 x 160 Watts
RMS Power @ 4 Ohm: 4 x 100 Watts
RMS Power @ 4 Ohm Bridged: 2 x 320 Watts
Total Harmonic Distortion: Less than 0.1%
S/N Ratio Ref 1W @ 4 Ohm: 90dB
Gain Range: 0.2 ~ 6 Volts
Crossover Range: 40Hz ~ 400Hz
Frequency Range: 20Hz ~ 20KHz
Bass Boost: 0 ~ 18dB(Rear Channels)
Forced Cooling System: N/A
Bass Remote Control: N/A
Amplifier Class: Full Range Digital
DIMENSIONS:
Length: 9.37? (238mm)
Width: 5.31? (135mm)
Height: 1.61? (41mm)
The F4 is an exact duplicate of the very popular NXL-400.4 but now offered in flat mount configuration so you can keep a flush and clean look to your install. This 4 channel amplifier is the go to source to power all your DS18 marine speakers as all are an amazing fit with this sleek and powerful hydro amp.
Highlights:
- IPX67 with flush mount design for simple and clean install on roof, panel and sub bux applications. (No exposed wiring)
- Built in voltmeter to monitor battery and charging system.
- Designed specifically for all powersport applications.
- Conformal Coated PCB to withstand outdoor elements.
- Full range Class D design offers efficiency and performance.
- Compact size for easy installation.
- Selectable/variable HPF/LPF/FULL Crossovers (40Hz-400Hz) clipping, power, protection status LED Indicator.
- Flush Mount Design, Perfect for Boxes, Boat Walls, ATV/RV, Wall Mount, etc.
This listing includes:
(1) DS18 4 Channel Marine Amplifier NXL-F4
SPECIFICATIONS:
RMS Power @ 2 Ohm: 4 x 160 Watts
RMS Power @ 4 Ohm: 4 x 100 Watts
RMS Power @ 4 Ohm Bridged: 2 x 320 Watts
Total Harmonic Distortion: Less than 0.1%
S/N Ratio Ref 1W @ 4 Ohm: 90dB
Gain Range: 0.2 ~ 6 Volts
Crossover Range: 40Hz ~ 400Hz
Frequency Range: 20Hz ~ 20KHz
Bass Boost: 0 ~ 18dB(Rear Channels)
Forced Cooling System: N/A
Bass Remote Control: N/A
Amplifier Class: Full Range Digital
DIMENSIONS:
Length: 9.37? (238mm)
Width: 5.31? (135mm)
Height: 1.61? (41mm)
