Ds18
DS18 5 CH MARINE & POWERSPORTS AMPLIFIER 2800 WATT CLASS D WITH FUSE & HOLDER
DS18 5 CH MARINE & POWERSPORTS AMPLIFIER 2800 WATT CLASS D WITH FUSE & HOLDER
Regular price
$599.95 USD
Regular price
Sale price
$599.95 USD
Unit price
/
per
Couldn't load pickup availability

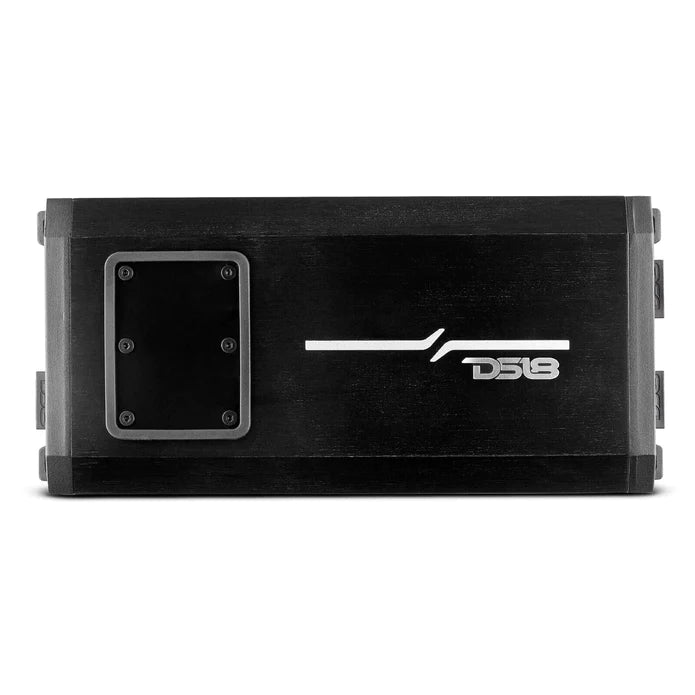

DS18 5 Ch Marine & Powersports Amplifier 2800 Watt Class D With Fuse & Holder
The DS18 NXL Series was developed for people who want a very a small audio footprint that is capable of putting out lots of power and sound in a small and waterproof package. The high pass and low pass filters will help you tune your speaker choice accurately so you can obtain crystal clarity from low volume levels all the way to maximum for the ultimate audio experience. The NXL Marine Amplifier series is exactly what the outdoors lover will need for their vehicle's audio to brave the trails, enjoy the lake, or any situation that needs a strong versatile waterproof amplifier.
AMPLIFIERS ARE NOT FOR SUBMERSIBLE USE - WILL VOID WARRANTY
FEATURES
- Includes a marine grade fuse and fuse holder that is connected inline with your main power wire will help with ultimate protection against the elements.
- 2 channel or 4 channel input selector
- IPX6 Waterproof Rating
- UV, Salt and Fog Protection
- Direct Power Harness Design with Marine Grade OFC Tinned Wires
- Latest Digital Amplifier Design With SMC Technology
This listing includes:
- (1) DS18 Marine Amplifier NXL-X1200.5D
- (1) DS18 Marine Grade Fuse Holder
POWER
Total Watts: 2800 Watts
RMS Power @ 4 ohm: 4 x 150W + 350W (SUB)
RMS Power @ 2 ohm: 4 x 200W + 600W (SUB)
RMS Power @ 4 ohm Bridge: 2 x 400W
AUDIO:
- Frequency Response: 10Hz-20KHz
- Signal to Noise Ratio 1W @ 4?: 100dB
- Efficiency @ 4 ohm: 85%
- Input Impedance: 20K OHM
- Channel Separation: 60dB
- Total Harmonic Distortion (THD): 0.05%
- Low Level Input Range: 200mV-5V
- Selectable X-Over: (HPF/Full/LPF) / LPF Fixed (SUB)
- X-Over Filter Range: 40Hz-2KHz / 50Hz-250Hz (SUB)
- Bass Boost Range: 0-18dB (SUB)
- Bass Boost Frequency: 42Hz (SUB)
- Infrasonic Filter: 10Hz-55Hz (SUB)
FEATURES
- Amplifier Class: Digital / Digital
- Amplifier Type: Stereo Full Range + Subwoofer
- Number of Channels: 5
- Minimum Impedance: 2 Ohms (Stereo) / 4 Ohm (Bridge) / 2 Ohm (SUB)
- Led Indicator: Power ' Protection ' Clip
- Power Input Size: 4GA Tinned OFC
- Fuse Size: 2 x 50A (100A)
- Thermal Protection: Yes / (75?C)
- Over-Load Protection: Yes
- Short Circuit Output Protection: Yes
- Voltage Input Protection: Yes (7-16V)
- Body Color ' Finish: Black Brushed Aluminum
EXTRA FEATURES
- 2Ch / 4Ch Input Selector: Yes / Dedicated SUB input
- RCA Audio Output: No
- Waterproof Rating: IP67
- UV / Salt Fog Protection: Yes
- Direct Power Harness Design: Yes
- Quick Connect Plug: Yes
- Surface Mount Component Technology: Yes
- Marine Grade Fuse Holder: Yes
MEASUREMENT
- Overall Length: 12.67" / 322mm
- Overall Wide: 4.4" / 112mm
- Overall Height: 1.77" / 45mm
- Heatsink Length: 11.87" / 301.7mm
- Gross Single Unit Weight: 5.29 Lbs
The DS18 NXL Series was developed for people who want a very a small audio footprint that is capable of putting out lots of power and sound in a small and waterproof package. The high pass and low pass filters will help you tune your speaker choice accurately so you can obtain crystal clarity from low volume levels all the way to maximum for the ultimate audio experience. The NXL Marine Amplifier series is exactly what the outdoors lover will need for their vehicle's audio to brave the trails, enjoy the lake, or any situation that needs a strong versatile waterproof amplifier.
AMPLIFIERS ARE NOT FOR SUBMERSIBLE USE - WILL VOID WARRANTY
FEATURES
- Includes a marine grade fuse and fuse holder that is connected inline with your main power wire will help with ultimate protection against the elements.
- 2 channel or 4 channel input selector
- IPX6 Waterproof Rating
- UV, Salt and Fog Protection
- Direct Power Harness Design with Marine Grade OFC Tinned Wires
- Latest Digital Amplifier Design With SMC Technology
This listing includes:
- (1) DS18 Marine Amplifier NXL-X1200.5D
- (1) DS18 Marine Grade Fuse Holder
POWER
Total Watts: 2800 Watts
RMS Power @ 4 ohm: 4 x 150W + 350W (SUB)
RMS Power @ 2 ohm: 4 x 200W + 600W (SUB)
RMS Power @ 4 ohm Bridge: 2 x 400W
AUDIO:
- Frequency Response: 10Hz-20KHz
- Signal to Noise Ratio 1W @ 4?: 100dB
- Efficiency @ 4 ohm: 85%
- Input Impedance: 20K OHM
- Channel Separation: 60dB
- Total Harmonic Distortion (THD): 0.05%
- Low Level Input Range: 200mV-5V
- Selectable X-Over: (HPF/Full/LPF) / LPF Fixed (SUB)
- X-Over Filter Range: 40Hz-2KHz / 50Hz-250Hz (SUB)
- Bass Boost Range: 0-18dB (SUB)
- Bass Boost Frequency: 42Hz (SUB)
- Infrasonic Filter: 10Hz-55Hz (SUB)
FEATURES
- Amplifier Class: Digital / Digital
- Amplifier Type: Stereo Full Range + Subwoofer
- Number of Channels: 5
- Minimum Impedance: 2 Ohms (Stereo) / 4 Ohm (Bridge) / 2 Ohm (SUB)
- Led Indicator: Power ' Protection ' Clip
- Power Input Size: 4GA Tinned OFC
- Fuse Size: 2 x 50A (100A)
- Thermal Protection: Yes / (75?C)
- Over-Load Protection: Yes
- Short Circuit Output Protection: Yes
- Voltage Input Protection: Yes (7-16V)
- Body Color ' Finish: Black Brushed Aluminum
EXTRA FEATURES
- 2Ch / 4Ch Input Selector: Yes / Dedicated SUB input
- RCA Audio Output: No
- Waterproof Rating: IP67
- UV / Salt Fog Protection: Yes
- Direct Power Harness Design: Yes
- Quick Connect Plug: Yes
- Surface Mount Component Technology: Yes
- Marine Grade Fuse Holder: Yes
MEASUREMENT
- Overall Length: 12.67" / 322mm
- Overall Wide: 4.4" / 112mm
- Overall Height: 1.77" / 45mm
- Heatsink Length: 11.87" / 301.7mm
- Gross Single Unit Weight: 5.29 Lbs
